Shifting to mass production is key to producing competitive renewable hydrogen. Partnering with Air Liquide, Siemens Energy is scaling production of electrolyzers using standardization and automation aiming to cut the cost of renewable hydrogen down to size. It’s a development that sits at the heart of the energy transition.
Hydrogen has a key role to play on the road to net zero.
Acting as an energy vector, a storage medium, a raw material for synthetic liquid fuels, and as a gaseous fuel able to address emissions from some of the hardest to abate industrial sectors like steel, chemicals, heavy transport and power generation, hydrogen is vital. Unfortunately, so-called green hydrogen generated using renewable energy is currently too expensive to produce. For this reason, thehydrogen market todayis dominated by steam reformation of natural gas, it’s essentially a fossil fuel. However, the imperative of climate change has been amplified by other factors such as security of energy supply concerns that have been greatly increased by the war in Ukraine, for example. This has emphasized the importance of developing a cost-effective renewable hydrogen industry and prompted an acceleration of the market.
Despite the growing interest in renewable hydrogen, the cost has remained an impediment to widespread adoption and displacement of the fossil-fuel derived hydrogen that dominates the current market. The joint venture between Siemens Energy and Air Liquide aims to producing industrial volumes of green hydrogen available bringing economies of scale through the mass production of electrolyzers. The move will not only secure access to electrolyzer capacity but crucially get them at the right price without compromising on safety, quality, and reliability.
Hydrogen Scaling production
Scaling renewable hydrogen production to industrial volumes starts with developing a supply chain that can meet global demand and deliver thousands of megawatts of electrolyzer capacity needed every year. By combining their expertise and efforts, Siemens Energy and Air Liquide intend to do just that with the launch of a gigawatt-scale factory in Berlin. The plant, which heavily relies on automation and robotics to produce electrolyzers in bulk, will initially produce 1 GW of Siemens Energy’s Silyzer 300 Proton Exchange Membrane (PEM) electrolyzer stacks annually. The PEM technology offers a high degree of efficiency and is ideally suited to the variable output that is typical of renewable energy resources. Furthermore, under current plans, this production capacity will increase by at least 1 GW per year, reaching a hefty 3 GW annually by 2025 with a potential for more. In a second step the electrolyzer arrays are being assembled locally, e.g. in the Siemens Energy manufacturing site Muelheim, or in external workshops in the Czech Republic or France or close to future project sites.

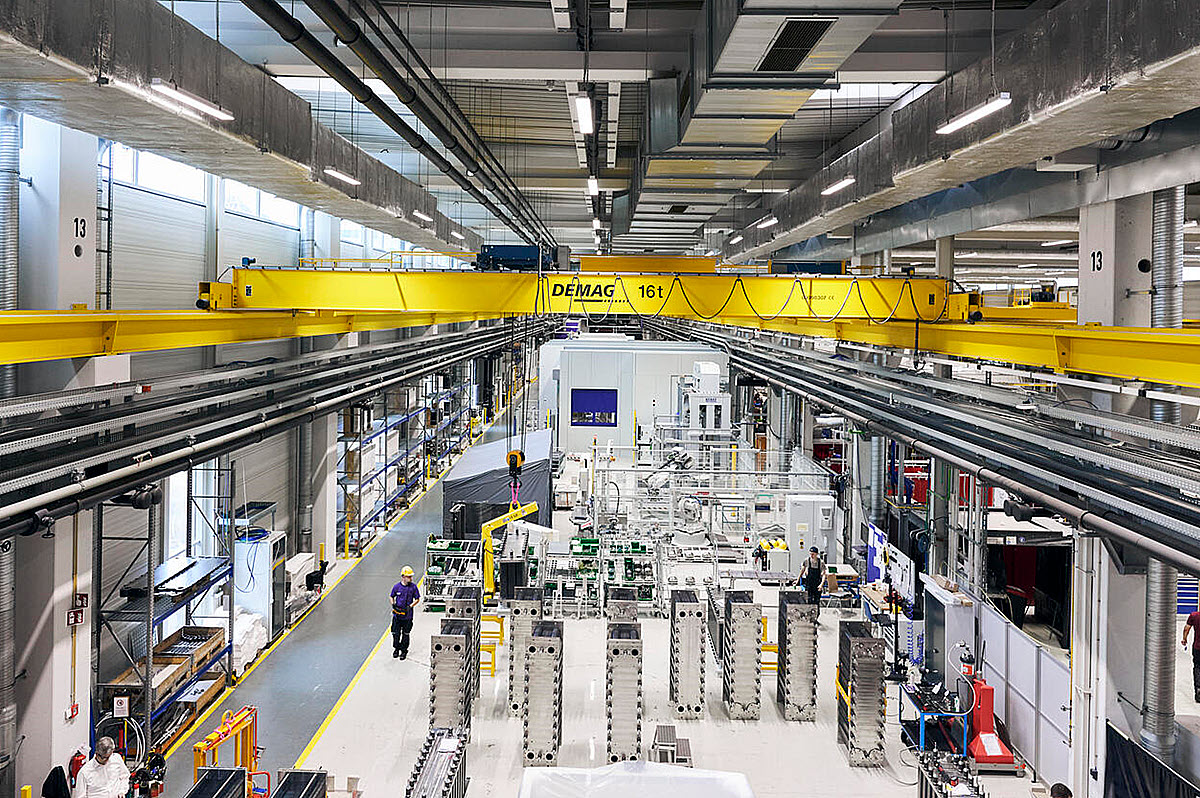

Production at the Huttenstrasse facility, located in Berlin’s Moabit district, has just started.The site has so far been known particularly to produce hydrogen-capable gas turbines. The new production line occupies some 2000 m2.The joint venture expects several benefits, alongside the economies of scale that are translating into a reduction in costs, as has been previously witnessed with renewable energy technologies like wind and solar PV. For example, by partnering with Air Liquide – which is taking a 25.1% equity stake in the JV alongside Siemens Energy’s 74.9% – the gigawatt-scale factory already has a strong business case with a reliable partnership that secures sustained, competitive and reliable product off-take. Both partners able to meet electrolyzer demand arising from their individual portfolios of hydrogen projects.
In addition, in partnering with Air Liquide, Siemens Energy has a strong relationship with a company that has vast experience and deep knowledge of the processes to produce the hydrogen and oxygen, such as hydrogen liquefaction, methanol synthesis, ammonia synthesis, or ammonia cracking.
It is key to long-term success that the Siemens Energy electrolyzer fits the needs of the downstream processes and can also be optimized to better meet those needs in the future. Air Liquide is already working with Siemens Energy electrolyzers deployed at its site in Oberhausen, Germany, in the flagship Trailblazer project. This allows both partners to gather detailed knowledge on how to integrate electrolyzers into an existing plant configuration and learn how to operate the system in combination with existing assets, such as compression and off-take. Sharing know-how, risks and opportunities, the partners aim to rapidly accelerate the transition to affordable renewable hydrogen.
One of the first projects to use stacks from the Berlin multi-gigawatt factory is Air Liquide’s Normand’Hy electrolyzer project. With a capacity of 200 MW, it is the one of the largest PEM electrolyzers currently under development. This project will apply the learnings from Air Liquide’s Trailblazer project in Oberhausen. Other renewable and low-carbon hydrogen projects are also earmarked for development in the Netherlands and elsewhere using the Berlin-produced stacks.
Continuing to cut costs
Within the framework of the partnership, Air Liquide and Siemens Energy have also agreed to dedicate R&D resources to the development of the next generation of electrolyzer technologies. Further efficiency improvements are anticipated, especially given the progress to date.
Siemens Energy started developing hydrogen electrolyzer technology more than a decade ago with a small lab-scale PEM. A commercial product, the Silyzer 200, followed in 2015 with a rated capacity of around 1.25 MW. Although the Silyzer 200 represented a major jump in capacity it was still not suitable for large-scale hydrogen production. That changed with the launch of theSilyzer 300which has more than 10 times the amount of hydrogen output than the 200 version. Indeed, the Silyzer portfolio scales up by factor 10 every four or five years and sees substantial improvements in efficiency with each generation.

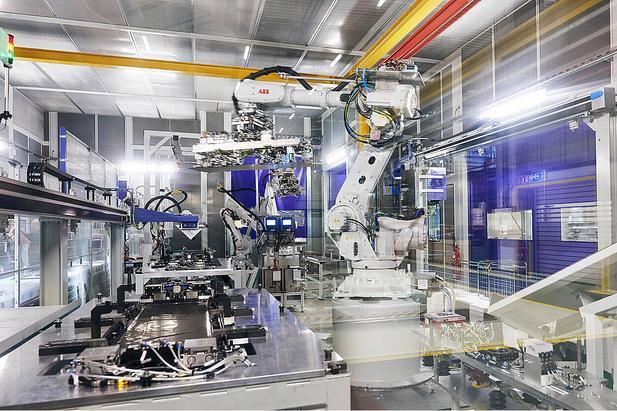

Simultaneously, manufacturing processes have also evolved, from the hand-built Silyzer 100 and 200 to exploring the development of automated manufacturing equipment and implementation of larger scale machines with the launch of the 300. Siemens Energy is also developing manufacturing equipment together with external companies, removing manual processes and increasing automation.
The focus inBerlin is mass productionof the existing stacks and a huge step up in production volumes. Increasing production with a factor of 100, within four or five years is only possible in a fully automated large-scale mass production plant of the kind that is being developed in Berlin. Solid investment in manufacturing capacity is enabling the supply chain to invest in capacity growth with confidence too, ramping up from single piece production to mass production in line with stack manufacturing volumes.
In order to cut the specific cost of hydrogen, while mass production of the stacks will take place in Berlin, assembly of the final product will take place closer to the project sites.The Silyzer product contains 24 PEM stacks but built around it are the various ancillaries that are needed for the stacks to operate. These items include the manifolds for the gas, the cooling system, the gas separation system, and the electrical connections among others. In Germany, this stage of assembly will take place at Mülheim but that will change depending on the location of the final project. For the Air Liquide Normand’Hy project, for example, Siemens Energy will work with a French company to produce the skid-mounted electrolyzer array. This approach of working with external partners close to where the final customers are based is key to match the market needs.
Building a hydrogen ecosystem
Reasonably priced and affordable renewable hydrogen derived from renewables is a prerequisite for achieving net zero carbon. It is therefore key for our future. By moving into large-scale mass production, the Air Liquide-Siemens Energy partnership is taking a big step towards a cost-effectivehydrogen economy using automationand standardization to build economies of scale. At the same time as volumes soar, demand for the electrolyzer business is also rapidly accelerating, rising from approximately 50 or 60 stacks five years ago and increasing by a factor of 10 this year and another factor of 5 to 10 anticipated over the next few years. By fostering a global ecosystem for electrolysis and hydrogen technology, the joint venture is engineering access to industrial volumes of cost-competitive renewable hydrogen. The challenge is global warming, part of the solution is a gigawatt-scale factory
The successful 130 kilowatt (kW) installation in Gumi, South Korea, further propels Bloom Energy’s efforts to enable a hydrogen-fueled economy following the commercial launch of the Bloom Electrolyzer in 2021.
Bloom’s high-temperature electrolyzer is operating at its designed high efficiency, producing hydrogen onsite more efficiently than low-temperature PEM and alkaline electrolyzers. Because it operates at high temperatures, the Bloom Electrolyzer requires less energy to split water molecules and produce hydrogen.
As electricity accounts for up to 80 percent of the cost of hydrogen from electrolysis, using less electricity increases the economics of hydrogen production and helps bolster adoption.
Fully operational at the Bloom SK Fuel Cell center in South Korea since January 2022, this new demonstration is testing electrolysis efficiency using water as an input in intermittency mode. The Bloom Electrolyzer is effectively and efficiently operating in daily cycles, demonstrating its ability to pair with intermittent renewables, such as solar and wind.
In production, the Bloom Electrolyzer is expected to operate at 46 kilowatt hours (kW-hr) per kilogram of hydrogen (kg H2) output with water as its input. When steam is used, the electrolyzer requires even less electricity, expected to operate at 40.4 kW-hr/kg H2, driving further efficiencies.
Deia Bayoumi, vice president, global product management, Bloom Energy, said:
The successful deployment of our electrolyzer internationally is a testament to the confidence it has garnered to create viable pathways to achieving a net-zero, hydrogen-fueled future.
“This marks a critical step in our mission to transform the global energy landscape and enable the hydrogen economy.”
The project aligns with South Korea’s efforts to decarbonize its energy system and become a global leader in the hydrogen economy in the coming decades. Investing heavily in new technologies and infrastructure to spur the production and adoption of the carbon-neutral fuel, South Korea aims to replace fossil fuels with hydrogen as its chief power source by 2050, according to the Ministry of Trade, Industry, and Energy.
With the capacity to scale hydrogen production rapidly, Bloom Energy and SK ecoplant are well-suited to drive South Korea’s energy transition forward.
Seoung-hwan Oh, vice president, hydrogen business, SK ecoplant, said:
A significant milestone in our successful partnership with Bloom Energy, this latest collaboration is a testament to our shared vision to transform South Korea’s energy landscape and unlock new value through innovation.
“Bloom Energy’s technology has demonstrated unparalleled performance and efficiency, further establishing us at the forefront of South Korea’s clean energy market.”
Highly flexible, the Bloom Electrolyzer offers unique advantages for deployment across a broad variety of hydrogen applications, using multiple energy sources including intermittent renewable energy and excess heat. Its modular design also makes it ideal for applications across gas, utilities, nuclear, wind, solar, ammonia and heavy industries. Thanks for staying up to date with Hydrogen Central.
For more information about the Bloom Electrolyzer and the company’s commitment to a zero-carbon future, visit: www.bloomenergy.com/bloomelectrolyzer.
About Bloom Energy
Bloom Energy empowers businesses and communities to responsibly take charge of their energy. The company’s leading solid oxide platform for distributed generation of electricity and hydrogen is changing the future of energy.
Fortune 100 companies around the world turn to Bloom Energy as a trusted partner to deliver lower carbon energy today and a net-zero future. For more information, visit www.bloomenergy.com.
Highlights:
Bloom Energy’s first international electrolyzer deployment showcases pathways to produce clean, low-cost hydrogen at scale to unlock South Korea’s net-zero future
